Energy Delivery Verification - Requirements & Validation¶

Overview¶

This section outlines the validation and verification logic of the activated flexiblity or baseline. To compute the delivered flexibility, the verification service uses the baseline and metering data provided by the flexibility seller.

The flowchart below illustrates the steps that lead to a successful verification process.

flowchart LR
    A[1.Sell order creation] -->B[2.Baseline submission]
    B --> |Data type validation| C[Verification]
    D[3.Flexibility Activation and Delivery] --> E
    E[4.Metering Data submission] --> |Data type validation| C
    C -->|logic validation| G[6.Verification Result]

1. The flow chart begins with the creation of a sell order

2. The baseline (data format) is submitted during the sell order creation or after order creation through the verification API

3. After the sell order has been matched with a corresponding buy order the flexibility activation and delivery process is initiated by the flexibility seller.

4. The metering data (data format) is submitted. Data type checks are applied during metering data submission.

5. The verification process is executed which first validates the baseline and metering data (business validation validation). If successful, the verification process continues and the verification result is created.

Verification Result Format¶

  "verification": {
    "verification_id": string, // UUID format
    "status": string, // e.g., "completed_success"
    "result": {
      "created_at": string, // ISO 8601 date-time format
      "baseline": {
        "energy": float, // computed energy of the trade timeframe
      },
      "metering": {
        "energy": float, // computed energy of the trade timeframe
      },
      "scheduled": float, // volume from trade event
      "delivered": float, // delivered flexibility
      "delivered_percentage": float, // total delivered flexibility in percentage 0 - 100
      "delta_absolut": float, // calculated flexibility delivered - flexibility scheduled
      "delta_percentage": float, //  (calculated flexibility delivered - flexibility scheduled) / flexibility scheduled * 100
      "unit": string, // e.g., "kWh"
      "status": string, // e.g., "success" or "error"
      "details": {
      "error": string, // error code or description
      "message": string // detailed error message
      }
    }
  }

Baseline and Metering Data Format¶

The verification service processes the following data must be provided by the flexibility seller for each sell order:

• Baseline forecasted consumption data (during order creation)
• Metering measured metering data from the metering point with the same metering ID (after a successful order match and activation)

The data format of the baseline and metering data is identical. The exact specification can also be found in the OpenAPI specification.

Requirements for the baseline and metering data are:

• same resolution/sampling rate
• same unit of measurement
• same metering ID
• same reading start and end times

Requirements for the baseline or the metering data are: - reading start and end times must match with first and last data point timestamps

{
  "metering_data": {
    "metering_id": string, // UUID format
    "created_at": string, // ISO 8601 date-time format
    "reading_start": string, // ISO 8601 date-time format
    "reading_end": string, // ISO 8601 date-time format
    "resolution": integer, // in seconds
    "unit_measured": string, // Enum: "W" "kW" "MW" "kWh" "Wh" "MWh"
    "data_points": [
      {
        "timestamp": string, // ISO 8601 date-time format
        "value": float // measured value
      }
    ]
  }
}

The validation checks are summarized in the table below with the corresponding error messages. The validation enforces consistency between baseline and metering datasets and verifies that the energy delivery complies with the contract.

Validation Checks¶

Verification Process¶

The verification process is executed by the VerificationProcessor class, which is instantiated with the DatabaseObject. The process involves the following steps:

sequenceDiagram
    participant vsrv as Verifier Service
    participant VerificationProcessor
    participant Baseline
    participant Metering
    participant Contract

    vsrv->>vsrv: initialise with Order Manager Event (metering data received)

    vsrv->>VerificationProcessor: execute_verification_process(contract)

    VerificationProcessor->>Contract: get traded energy
    VerificationProcessor->>Baseline: get baseline datapoints
    VerificationProcessor->>Metering: get metering data points

    VerificationProcessor->>VerificationProcessor: calc_flexibility(sum_baseline, sum_metering, traded energy)

    alt Flex delivery too low
        VerificationProcessor->>VerificationProcessor: verification status to Error
    else Flex delivery acceptable
        VerificationProcessor->>VerificationProcessor: verification status SUCCESS
    end

    VerificationProcessor->>VerificationProcessor: compute delta scheduled

    VerificationProcessor->>VerificationProcessor: create contract verification result
    VerificationProcessor->>vsrv: return VerificationResult

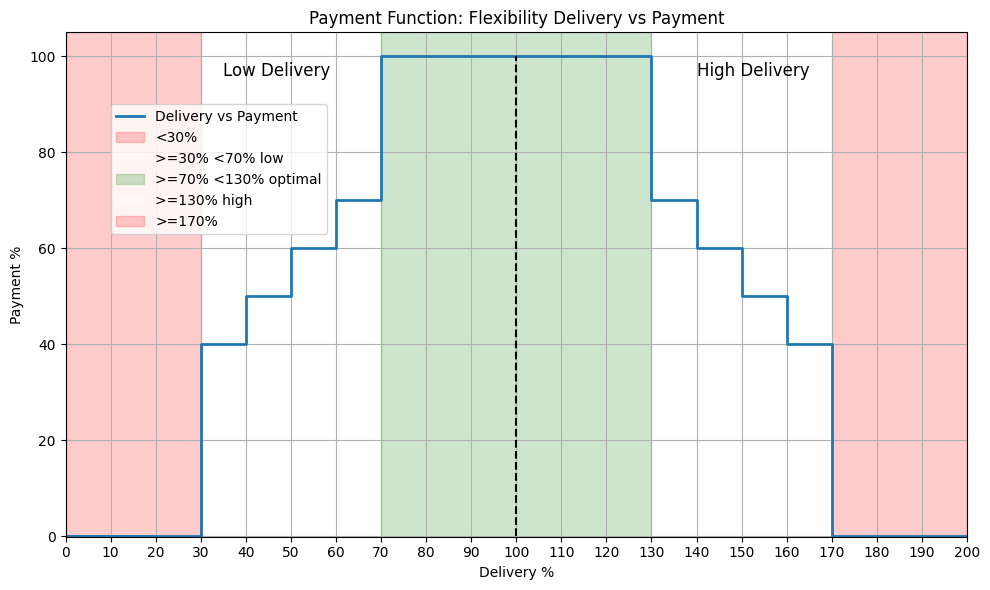

The verification processor calculates the delivered flexibility by summing the baseline and metering data points. The delivered flexibility is then compared to the traded energy volume from the contract. If the delivered flexibility percentage is in the green and white area of the image below the verification status is set to "success", if the verification status is in the red area the verification status is set to "error".

Fig. Delivery vs payment

Example Payload Sell Order with Baseline Data¶

{
        "side": "sell",
        "power": 1000,
        "price": 1,
        "delivery_start": "2026-08-01T10:00:00Z",
        "delivery_end": "2026-08-01T11:00:00Z",
        "expiry_time": "2026-08-01T09:00:00Z",
        "location": {
            "location_id": [
            "FI_123435"
            ],
            "country_code": "FI"
        },
        "baseline": {
            "metering_id": "ce15bc33-2bda-4d26-8ddd-b958b22b569b",
            "created_at": "2026-08-01T08:00:00Z",
            "reading_start": "2026-08-01T10:00:00Z",
            "reading_end": "2026-08-01T11:00:00Z",
            "resolution": 900,
            "unit_measured": "kWh",
            "data_points": [
            {
                "timestamp": "2026-08-01T11:15:00Z",
                "value": 1
            },
            {
                "timestamp": "2026-08-01T11:30:00Z",
                "value": 2
            },
            {
                "timestamp": "2026-08-01T11:45:00Z",
                "value": 3
            },
            {
                "timestamp": "2026-08-01T12:00:00Z",
                "value": 4
            }
            ]
        }
    }
